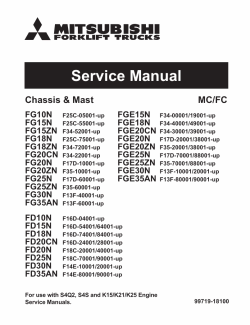

Mitsubishi Forklifts FG10N-FG35A, FGE10N-FGE35AN, FD10N-FD35AN MC-FC 2 :

Mitsubishi Forklifts Service Manuals and Wiring Diagrams

Chassis, Mast & Options
FG10N F25C-05001-up
FG15N F25C-55001-up
FG15ZN F34-52001-up
FG18N F25C-75001-up
FG18ZN F34-72001-up
FG20CN F34-22001-up
FG20N F17D-10001-up
FG20ZN F35-10001-up
FG25N F17D-60001-up
FG25ZN F35-60001-up
FG30N F13F-40001-up
FG35AN F13F-60001-up

FD10N F16D-04001-up
FD15N F16D-54001/64001-up
FD18N F16D-74001/84001-up
FD20CN F16D-24001/28001-up
FD20N F18C-20001/40001-up
FD25N F18C-70001/90001-up
FD30N F14E-10001/20001-up
FD35AN F14E-80001/90001-up

FGE15N F34-00001/19001-up
FGE18N F34-40001/49001-up
FGE20CN F34-30001/39001-up
FGE20N F17D-20001/38001-up
FGE20ZN F35-20001/38001-up
FGE25N F17D-70001/88001-up
FGE25ZN F35-70001/88001-up
FGE30N F13F-10001/20001-up
FGE35AN F13F-80001/90001-up

This manual has information about the layout and names of main components, procedures for disassembly, assembly, inspection, adjustment, maintenance, and pinpointing faults which are in effect mainly for the model FB-CA.
Since the parts used in this machine are subject to change for the sake of better quality, performance enhancement, and safety, some portions of the contents and illustrations of the "SERVICE MANUAL-Chassis & Mast-" may not be identified.

Most accident happens due to the disregard of basic safety rules or precautions. In order to prevent accidents from happening, the factors responsible for accidents must be avoided beforehand.
For this reason, please read this manual and fully understand the precautions for safety and the proper procedures and directions for inspection and maintenance before starting operation. Performing maintenance and repair without adequate knowledge may cause inadvertent accidents.

It is not possible to cover all the possible cases of accidents in this "SERVICE MANUAL-Chassis & Mast-". Therefore, attention should be given to precautions other than the ones mentioned in this "SERVICE MANUAL-Chassis & Mast-". Especially, when repair and maintenance work which are not covered in this "SERVICE MANUAL-Chassis & Mast-" are carried out, always work under the direction of an instructor who understands the matter.
